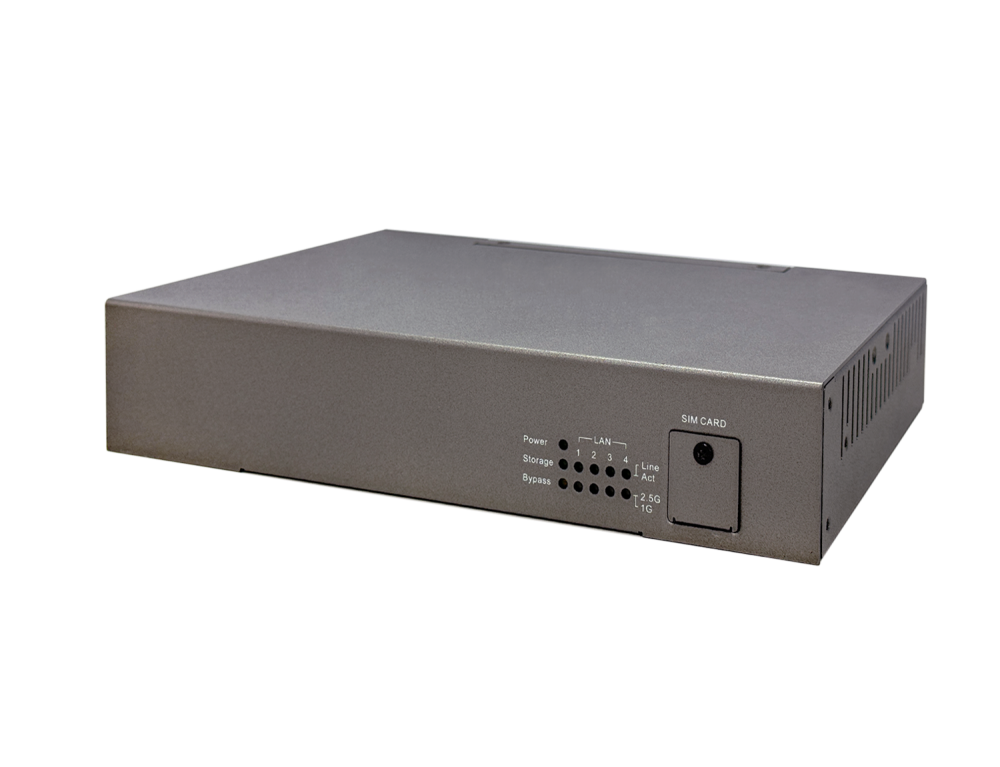

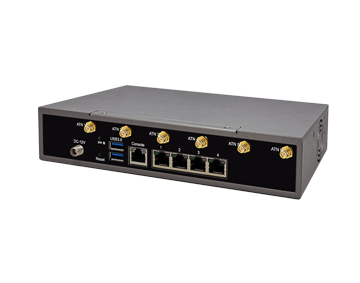

NSA-50A1
The NSA-50A1 Desktop Network Appliance is an entry-level CPE tailored for software companies, internet providers, and small businesses. Powered by the Intel Atom™ C3338R Processor, it integrates Intel QuickAssist Technology (QAT) for efficient encryption and compression, delivering reliable performance across LAN, firewall, and security gateway applications.
• Intel® Atom® Processor C3338R
• 1 x DDR4 SO-DIMM
• Optional DC-IN 12V single power / Dual power
• TPM 2.0
• Optional 4G LTE, 5G, WiFi
• 1 x Serial console
• Smart Fan design
• Storage: 1 x 2.5” Internal HDD Bay
• Real time clock: Lithium Battery, 3V 220mAH (CR2032)
• Security: TPM 2.0
• Operating System: Linux Kernel 5.15 LTS & above (64-bit)
• Support Protocol: Support QAT & DPDK
• Power Requirement: Input voltage: 12VDC
• Power Consumption: 40 W (typical)
• Dimension: 215mm (W) x 143mm (D) x 44mm (H)
• Weight: 1.2 kg
• Operating Temperature: 32 °F ~ 104 °F (0 °C ~ 40 °C)
• Storage Temperature: -4 °F ~ 176 °F (-20 °C ~ 80 °C)
• Operating Humidity: 0% ~ 95% relative humidity (RH), non-condensing
• Regulations: CE, FCC, RoHs
• Ethernet: 4 x 2.5 GbE RJ-45
• USB: 2 x USB 3.0 (Type A)
• Power Connector: 1 or 2 x 5.5mm x 2.1mm DC input, connectors (optional)
• Expansion Slot: 1 x M.2 B Key (3042/3052), USB3.0/2.0 (Shared with storage), 1 x M.2 E Key (2230), PCIe x1 + USB2.0 for Wi-Fi/BT
• Other Interface: Reset button SW reset button
